| MODEL |
AS1 |
AS2 |
AS4 |
| Input Voltage |
1 Φ 110VAC ±10% |
1 Φ 220VAC ± 10% |
3 Φ 220VAC ± 10% |
3 Φ 380/440VAC ± 10% |
| Model No. |
104 |
107 |
104 |
107 |
115 |
122 |
137 |
304 |
307 |
315 |
322 |
337 |
307 |
315 |
322 |
337 |
| Input Frequency |
50HZ~60HZ ± 10% |
50~60HZ ± 10% |
50~60HZ ± 10% |
| Output Voltage |
3 Φ 220VAC |
3 Φ 220VAC |
3 Φ 380/440VAC |
| Output Frequency |
0.5~400HZ |
0.5~400HZ |
0.5~400HZ |
| Rated Current (A) |
3 |
5 |
3 |
5 |
8 |
11 |
17 |
3 |
5 |
8 |
11 |
17 |
2.5 |
4 |
6 |
9 |
| Capacity (KVA) |
1.1 |
1.9 |
1.1 |
1.9 |
3.1 |
4.2 |
6.5 |
1.1 |
1.9 |
3.1 |
4.2 |
6.5 |
1.9 |
3.1 |
4.2 |
6.9 |
| Largest Motor (4P)KW |
0.4 |
0.75 |
0.4 |
0.75 |
1.5 |
2.2 |
3.7 |
0.4 |
0.75 |
1.5 |
2.2 |
3.7 |
0.75 |
1.5 |
2.2 |
3.7 |
| Control Method |
SINEWAVE PWM |
SINEWAVE PWM |
SINEWAVE PWM |
SINEWAVE PWM |
| Cooling Method |
Self-Cooled |
Air-Cooled |
Self-Cooled |
Air-Cooled |
Self-Cooled |
Air-Cooled |
Air-Cooled |

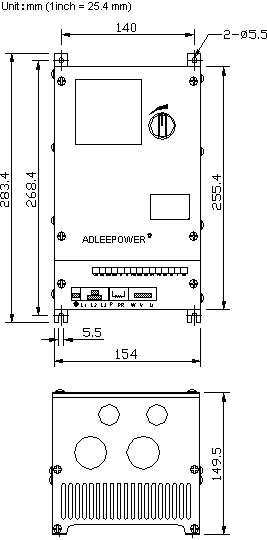

| Dimension Drawing |
Fig |
Fig2 |
Fig |
Fig2 |
Fig3 |
Fig |
Fig2 |
Fig3 |
Fig2 |
Fig3 |
| Weight (KG) |
1.2 |
1.3 |
1.2 |
1.3 |
1.3 |
1.4 |
4.2 |
1.2 |
1.3 |
1.3 |
1.4 |
4.2 |
1.2 |
1.3 |
4 |
