Especificaciones Técnicas - ADLEE AP4G3
| MODEL | AP4G3 | ||||||
|---|---|---|---|---|---|---|---|
| Input Voltage | 3 Φ 380/440VAC ±10% | ||||||
| Model No. | 07 | 15 | 22 | 37 | 55 | 75 | 110 |
| Input Frequency | 50HZ - 60HZ ± 5% | ||||||
| Output Voltage | 3 Φ 380/440VAC | ||||||
| Output Frequency | 0.5HZ - 400HZ | ||||||
| Rated Current (A) | 2.5 | 4 | 6 | 9 | 12 | 17 | 23 |
| Capacity (KVA) | 1.9 | 3 | 4.2 | 6.9 | 9.1 | 13 | 17.5 |
| Largest Motor (4P)KW | 0.75 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 11 |
| Control | Sine wave pulse width modulation | ||||||
| Cooling Method | Self-Cooled | Air-Cooled | |||||

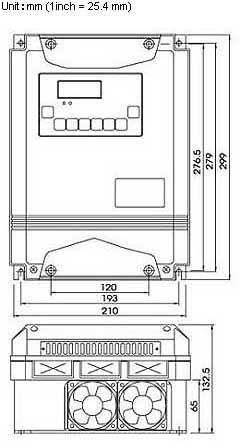

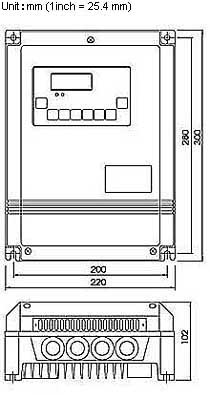

| Dimension Drawing | Fig5 | Fig6 | |||||
| Weight (KG) | 3.2 | 3.3 | 3.3 | 5.5 | 6.2 | 6.6 | 6.8 |
