- MS Series Especificaciones

Model

MS2

Voltage

1 Φ 220VAC ± 10%

Model No

MS2-102

MS2-104

MS2-107

MS2-115

MS2-122

Input Frequency

50Hz~60Hz ± 10%

Output Voltage

3 F 220VAC

Output Frequency

0.5~800Hz

Output Rated current(A)

1.6A
3A
5A
8A
11A

capacity (KVA)

0.6KA
1.1KVA
1.9KVA
3.1KVA
4.2KVA

Largest motor
KW(4 poles)

0.2KW
0.4KW
0.75KW
1.5KW
2.2KW

Control

Sine wave pulse width modulation

Cooling Method

Self-cooled

Self-cooled

Self-cooled

Air-cooled

Air-cooled

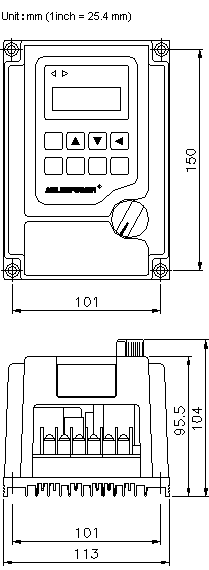

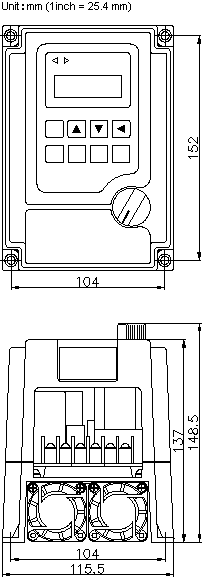

Dimension drawing

Fig

Fig

Fig

Fig2

Fig2

Weight(NW.KG)

1.2KG
1.2KG
1.3KG
1.3KG

1.4KG
