- AP4G5 Series Especificaciones
MODEL
AP2G5
AP4G5
 Input Voltage
3Ø 220VAC ±10%
3Ø 380/440VAC ±10%
 Model No
37
55
75
110
150
185
220
37
55
75
110
150
185
220
 Input Frequency
50HZ / 60HZ ±5%
 Output Voltage
3Ø 220VAC
3Ø 380/440VAC
 Output Frequency
0.1HZ ~ 400HZ
 Rated Current (A)
17
24
33
46
62
76
90
8.5
12
16.5
23
31
38
45
 Capacity (KVA)
6.5
9.2
12.6
17.6
23.6
29
34
6.5
9.2
12.6
17.6
23.6
29
34
 Largest Motor (4poles) (KW)
3.7
5.5
7.5
11
15
18.5
22
3.7
5.5
7.5
11
15
18.5
22
 Control Method
SV PWM
 Cooling Method
Air-Cooled

Approval

None
CSAcus
None
CSAcus
 Weight (KG)
5.6
5.8
6.2
14.5
14.5
16
16
5.6
5.8
6.2
14.5
14.5
16
16

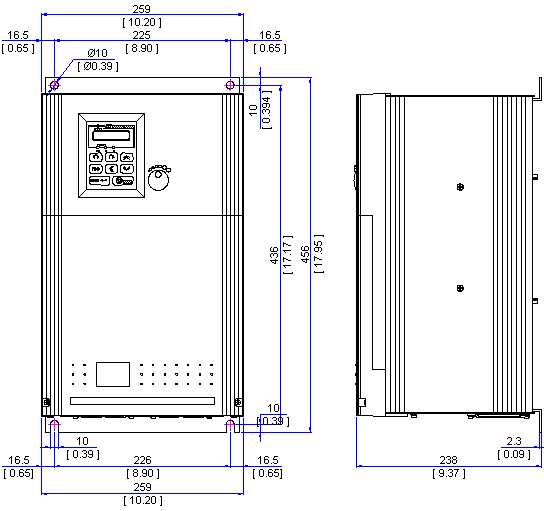

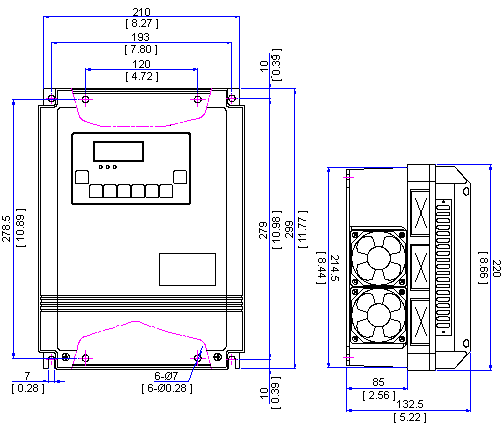

 (mm)
